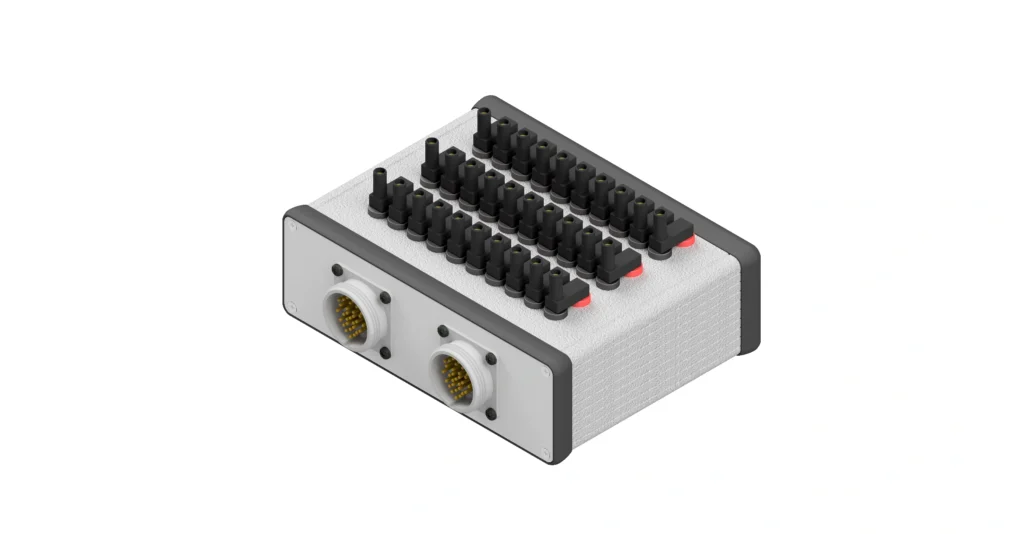

The BOB-X-30P provides a practical interface between an ECU and the corresponding DUT or test harness, allowing individual wires and signals to be accessed without working directly with complex harnesses.

Its aluminum enclosure provides a lightweight and durable solution for portable or benchtop testing. The unit supports measurement and diagnostic access through 4 mm banana sockets and is designed for applications requiring reliable signal access during ECU validation and troubleshooting.

The BOB-X-30P supports CAN, LIN, DIO, PW, and ANG signal interfaces and provides circuit interruption through 4 mm/14 mm jumpers. A fault-insertion function is also available for controlled testing.

Key Features

• 30-channel breakout box
• Robust 4 mm measurement and diagnostic access
• High-current capability for ECU and power applications
• Lightweight and durable aluminum enclosure
• Portable / benchtop format
• Circuit interruption using 4 mm/14 mm jumpers
• 8 A CC fault insertion
• Support for CAN, LIN, DIO, PW, and ANG interfaces
• 100 cm cable length
• Standard configuration available
• Fully customized configurations available

Technical Specifications

The BOB-X-30P combines robust construction with versatile electrical and signal interfaces for reliable ECU testing, measurement, diagnostics, and validation. The key technical specifications are summarized below.

Applications

The BOB-X-30P is intended for use in:

• ECU testing
• Electrical measurement
• Diagnostics
• ECU validation
• Troubleshooting
• Automotive testing
• Aerospace testing
• Test bench applications

Included Accessories

• Jumpers
• Output wired circular connector

Configuration

The BOB-X-30P is available as a standard universal breakout box. Customized configurations can also be provided according to application requirements.

Safe Use

The breakout box should be connected between the ECU and the corresponding DUT or test harness. Before energizing the system, verify that all connections are correctly identified and respect the specified voltage, current, and isolation limits of the selected configuration.

For high-current or sensitive communication signals, use approved test leads and application-specific connection methods. The unit should be operated in a controlled test environment and disconnected from the power source before changing wiring, connectors, or configuration.

Custom Configurations

Beyond the standard configuration, RAYNOV can provide customized breakout box solutions adapted to specific harnesses, connectors, signal requirements, and testing environments.

Need a configuration adapted to your test setup? Contact our team to discuss your requirements.
